MODEL
|
DYV-3WAY
|
|
APPLICABLE FLUID
|
AIR
|
|
APPLICABLE PRESSURE
|
15 kgf/cm²
|
|
MAXIMUM PRESSURE
|
18 kgf/cm²
|
|
HYDRAULIC TEST
|
27 kgf/cm²
|
|
MATERIALS
|
BODY : BC6
|
|
| |
 |
| |
|
MODEL NO.
|
H
|
L |
|
DYV 1400 |
103 |
85 |
|
 |
| |
 |
|
| |
|

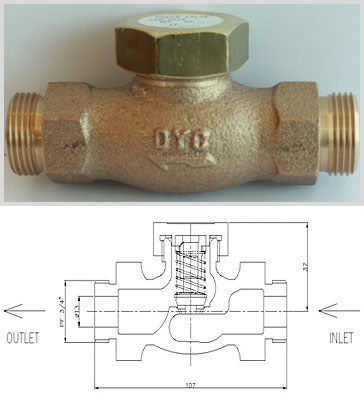

MODEL
|
DYV-CHECK
|
|
APPLICABLE FLUID
|
AIR
|
|
APPLICABLE PRESSURE
|
15 kgf/cm²
|
|
MAXIMUM PRESSURE
|
18 kgf/cm²
|
|
HYDRAULIC TEST
|
27 kgf/cm²
|
|
MATERIALS
|
BODY : BC6
|
|
| |
|
| |
|
MODEL NO.
|
H
|
L |
|
DYV 3538 |
37 |
107 |
|
|
|
|
|
| |
 |
| |
|
| |
|

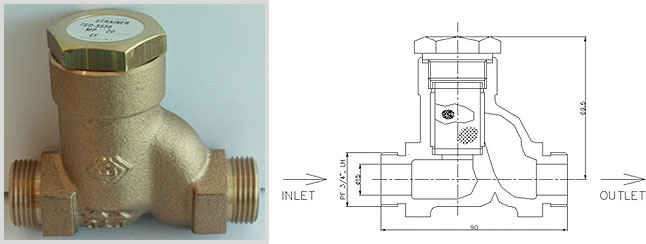

MODEL
|
DYV-STRAINER
|
|
APPLICABLE FLUID
|
AIR
|
|
APPLICABLE PRESSURE
|
15 kgf/cm²
|
|
MAXIMUM PRESSURE
|
18 kgf/cm²
|
|
HYDRAULIC TEST
|
27 kgf/cm²
|
|
MATERIALS
|
BODY : BC6
|
|
| |
|
| |
|
MODEL NO.
|
H
|
L |
|
DYV 3539 |
69.5 |
90 |
|
 |
| |
|
|
| |
|
| |
|

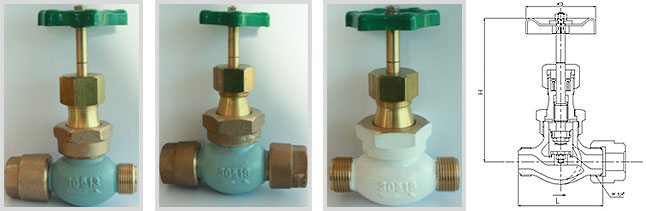

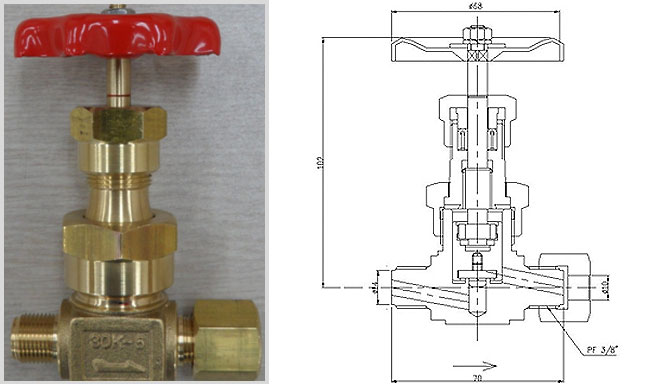

MODEL
|
DYV-DRAIN
|
|
APPLICABLE FLUID
|
AIR
|
|
APPLICABLE PRESSURE
|
15 kgf/cm²
|
|
MAXIMUM PRESSURE
|
18 kgf/cm²
|
|
HYDRAULIC TEST
|
27 kgf/cm²
|
|
MATERIALS
|
BODY : BC6
|
|
| |
|
| |
|
MODEL NO.
|
H
|
L |
|
DYV 8009 |
102 |
70 |
|
