DY-FLANGE TYPE
|
|
 |
|
|
SPRAY HEAD
|
| |
 |
|
|

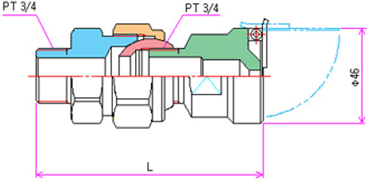

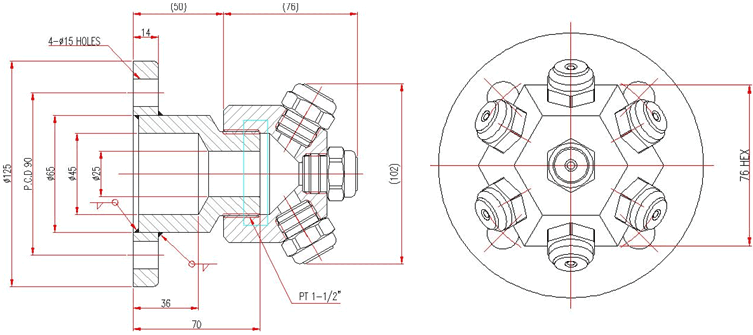

SPRAY HEAD OUTLINE DWG
|
|
|
| |
|
|
| |
|
MODEL |
FITTING THREAD
|
ORIFICE DIAMETER
|
FLOW RATE(l/min)
|
SPRAYING ANGLE
|
|
DYC15A
|
PT 1/2”
|
6.3mm
|
30
|
120' |
|
DYC20A
|
PT ¾”
|
7.0mm
|
40 |
120' |
|
DYC25A
|
PT 1”
|
12mm
|
100 |
120' |
|
| |
|
|
| |
|

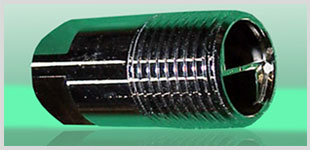

- Full cone spray pattern with wide spraying angle
- Uniformed distribution through sprial type vane
- Excellent persistence by plating and galvanizing(Hot dip galv’)
|
| |
|
|
| |
|
- Stainless steel (SUS304,316,316L), Brass, etc..
- Other materials are available on request
|
| |
|
|
| |
|
- Vessel : For fire extinguisher in dangerous room, engine room defined by IMO.
- Industries : Washing and cooling in industrial process and steel strip by spraying anticorrosive liquid or mold release
- Other wide angle required fields
|
| |
 |
|
|

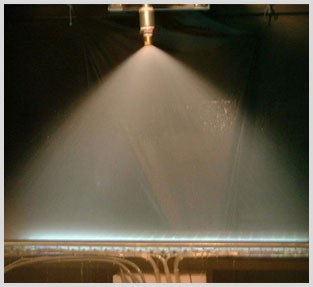

FULL CONE TYPE SPRAING
|
|
 |
|
|

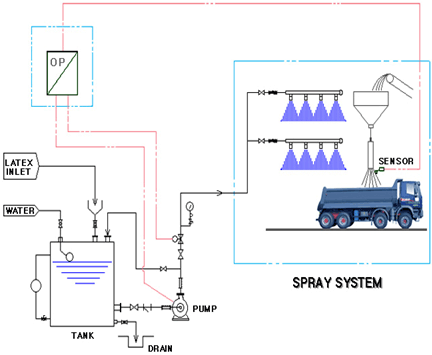

WATER SPRAY SYSTEM EXAMPLE
|
|
|
| |
 |
| |
|
| |
 |
| |
|

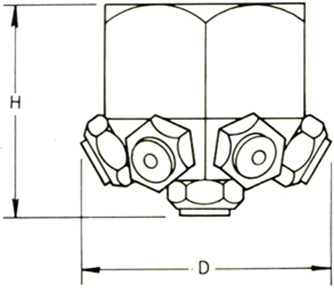

DY-7G TYPE
|
|
 |
| |
|
SIZE |
28'x20'
|
24'x16'
|
| D1 |
837 |
812.8 |
|
|
|
| |
 |
| |
|
|
| |
|
Nozzle Inlet Conn.PT |
Capacity Size
|
Water Pressure(Kg/Cm)
|
Water Fiow Rate(L/Min) |
Spray Angle |
Material |
| 1-1/2' |
40 |
4 |
110 |
120 |
BRASS+
CR도금 |
|
