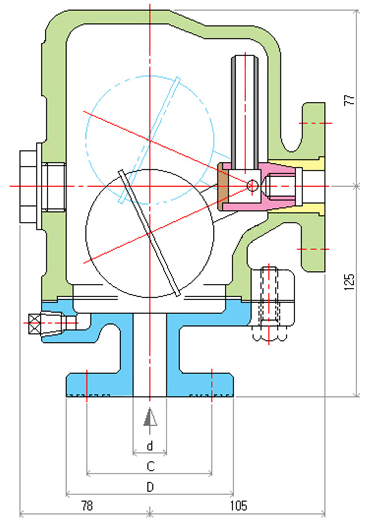

The float control assembly discharges air and gas from all liquid carrying systems without time lag, independent of pressure and temperature variations.
With the float in the lower position the outlet cross-section is open. Air and gas escape through the upturned immersion tube.
Rising of the liquid level lifts the float and causes to close the outlet.



SIZE

d

C

D

15A

15 70 95

20A

20 75 100

25A

25 90 126
